Quick Start Demo

Below you can find instructions on how to setup the self-driving demo of AWSIM simulation controlled by Autoware. The instruction assumes using the Ubuntu OS.

Demo configuration

The simulation provided in the AWSIM demo is configured as follows:

AWSIM Demo Settings
Vehicle Lexus RX 450h
Environment Japan Tokyo Nishishinjuku
Sensors Gnss * 1
IMU * 1
LiDAR * 1
Traffic camera * 1
Traffic Randomized traffic
ROS2 humble

PC specs

Please make sure that your machine meets the following requirements in order to run the simulation correctly:

Required PC Specs
OS Ubuntu 22.04
CPU 6cores and 12thread or higher
GPU RTX2080Ti or higher
Nvidia Driver (Windows) >=472.50
Nvidia Driver (Ubuntu 22) >=515.43.04

Localhost settings

The simulation is based on the appropriate network setting, which allows for trouble-free communication of the AWSIM simulation with the Autoware software. To apply required localhost settings please add the following lines to ~/.bashrc file:

if [ ! -e /tmp/cycloneDDS_configured ]; then
    sudo sysctl -w net.core.rmem_max=2147483647
    sudo ip link set lo multicast on
    touch /tmp/cycloneDDS_configured
fi

and these lines to ~/.profile or in either of files: ~/.bash_profile or ~/.bash_login:

export ROS_LOCALHOST_ONLY=1
export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp

Warning

A system restart is required for these changes to work.

Start the demo

Running the AWSIM simulation demo

To run the simulator, please follow the steps below.

  1. Install Nvidia GPU driver (Skip if already installed).

    1. Add Nvidia driver to apt repository
      sudo add-apt-repository ppa:graphics-drivers/ppa
      sudo apt update

    2. Install the recommended version of the driver.

      sudo ubuntu-drivers autoinstall


      Warning

      Currently, there are cases where the Nvidia driver version is too high, resulting in Segmentation fault. In that case, please lower the Nvidia driver version (525 is recommended.)

    3. Reboot your machine to make the installed driver detected by the system.

      sudo reboot


    4. Open terminal and check if nvidia-smi command is available and outputs summary similar to the one presented below.
      $ nvidia-smi
      Fri Oct 14 01:41:05 2022
      +-----------------------------------------------------------------------------+
      | NVIDIA-SMI 515.65.01    Driver Version: 515.65.01    CUDA Version: 11.7     |
      |-------------------------------+----------------------+----------------------+
      | GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
      | Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
      |                               |                      |               MIG M. |
      |===============================+======================+======================|
      |   0  NVIDIA GeForce ...  Off  | 00000000:01:00.0  On |                  N/A |
      | 37%   31C    P8    30W / 250W |    188MiB / 11264MiB |      3%      Default |
      |                               |                      |                  N/A |
      +-------------------------------+----------------------+----------------------+

      +-----------------------------------------------------------------------------+
      | Processes:                                                                  |
      |  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
      |        ID   ID                                                   Usage      |
      |=============================================================================|
      |    0   N/A  N/A      1151      G   /usr/lib/xorg/Xorg                133MiB |
      |    0   N/A  N/A      1470      G   /usr/bin/gnome-shell               45MiB |
      +-----------------------------------------------------------------------------+

  2. Install Vulkan Graphics Library (Skip if already installed).

    1. Update the environment.
      sudo apt update

    2. Install the library.
      sudo apt install libvulkan1

  3. Download and Run AWSIM Demo binary.

    1. Download AWSIM_v1.2.3.zip.

      Download AWSIM Demo for ubuntu

    2. Unzip the downloaded file.

    3. Make the AWSIM.x86_64 file executable.

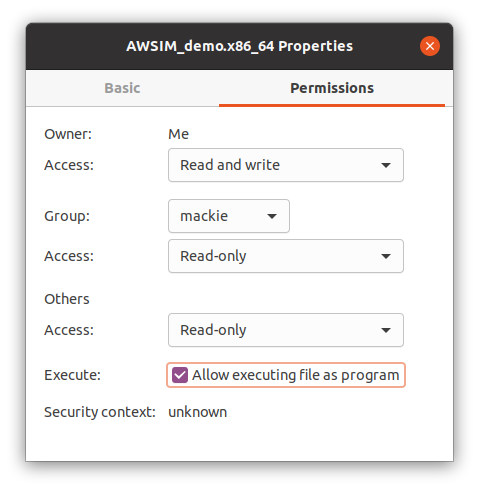

      Rightclick the AWSIM.x86_64 file and check the Execute checkbox

      or execute the command below.

      chmod +x <path to AWSIM folder>/AWSIM.x86_64

    4. Launch AWSIM.x86_64.

      ./<path to AWSIM folder>/AWSIM.x86_64


      Warning

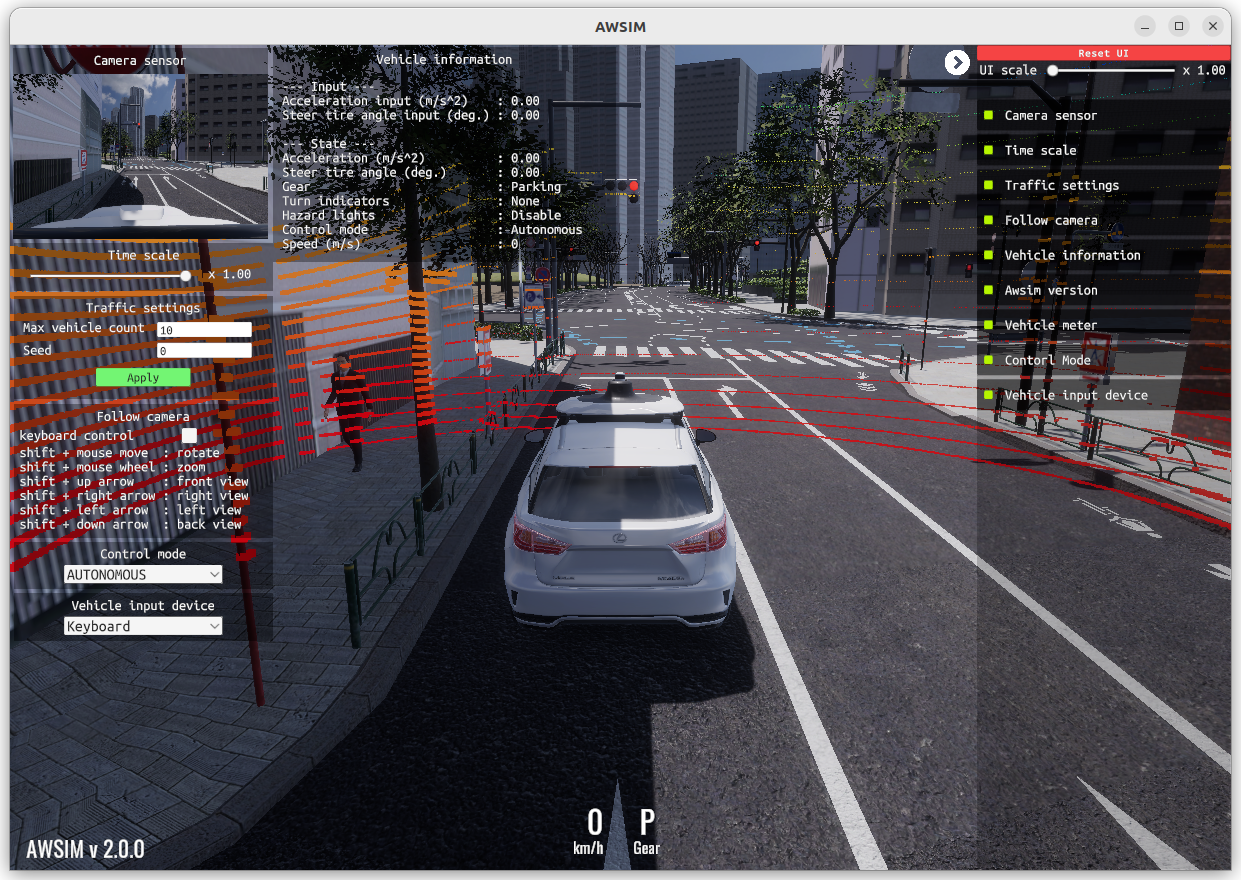

      It may take some time for the application to start the so please wait until image similar to the one presented below is visible in your application window.

Launching Autoware

In order to configure and run the Autoware software with the AWSIM demo, please:

  1. Download map files (pcd, osm) and unzip them.

    Download Map files (pcd, osm)

  2. Clone Autoware and move to the directory.

    git clone https://github.com/autowarefoundation/autoware.git
    cd autoware


  3. Switch branche to awsim-stable. NOTE: The latest main branch is for ROS 2 humble.
    git checkout awsim-stable

  4. Configure the environment. (Skip if Autoware environment has been configured before)
    ./setup-dev-env.sh

  5. Create the src directory and clone external dependent repositories into it.
    mkdir src
    vcs import src < autoware.repos

  6. Install dependent ROS packages.
    source /opt/ros/humble/setup.bash
    rosdep update
    rosdep install -y --from-paths src --ignore-src --rosdistro $ROS_DISTRO

  7. Build the workspace.
    colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release -DCMAKE_CXX_FLAGS="-w"

  8. Launch Autoware.

    Warning

    <your mapfile location> must be changed arbitrarily. When specifying the path the ~ operator cannot be used - please specify absolute full path.

    source install/setup.bash
    ros2 launch autoware_launch e2e_simulator.launch.xml vehicle_model:=sample_vehicle sensor_model:=awsim_sensor_kit map_path:=<your mapfile location>


Let's run the self-Driving simulation

  1. Launch AWSIM and Autoware according to the steps described earlier in this document.

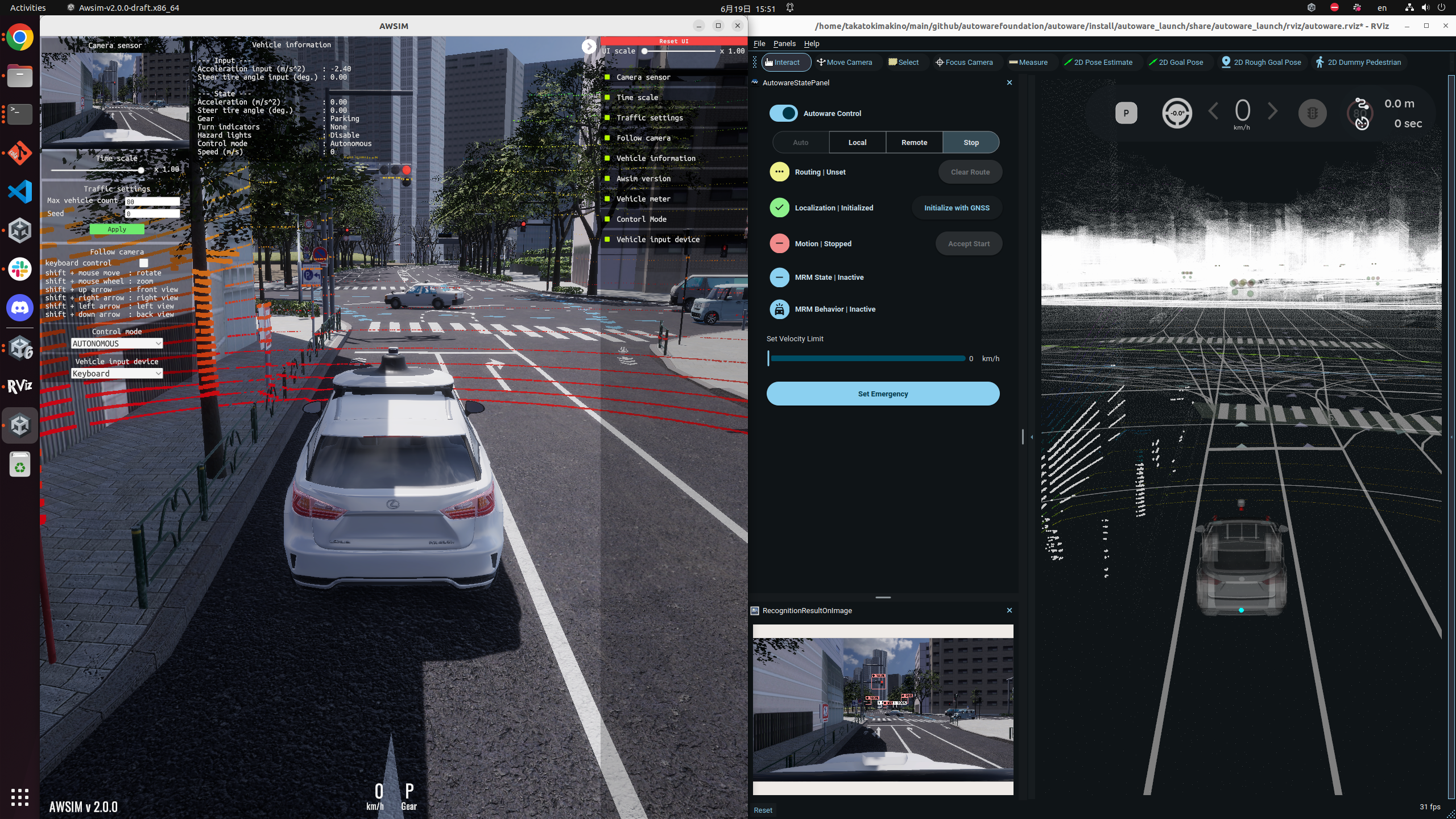

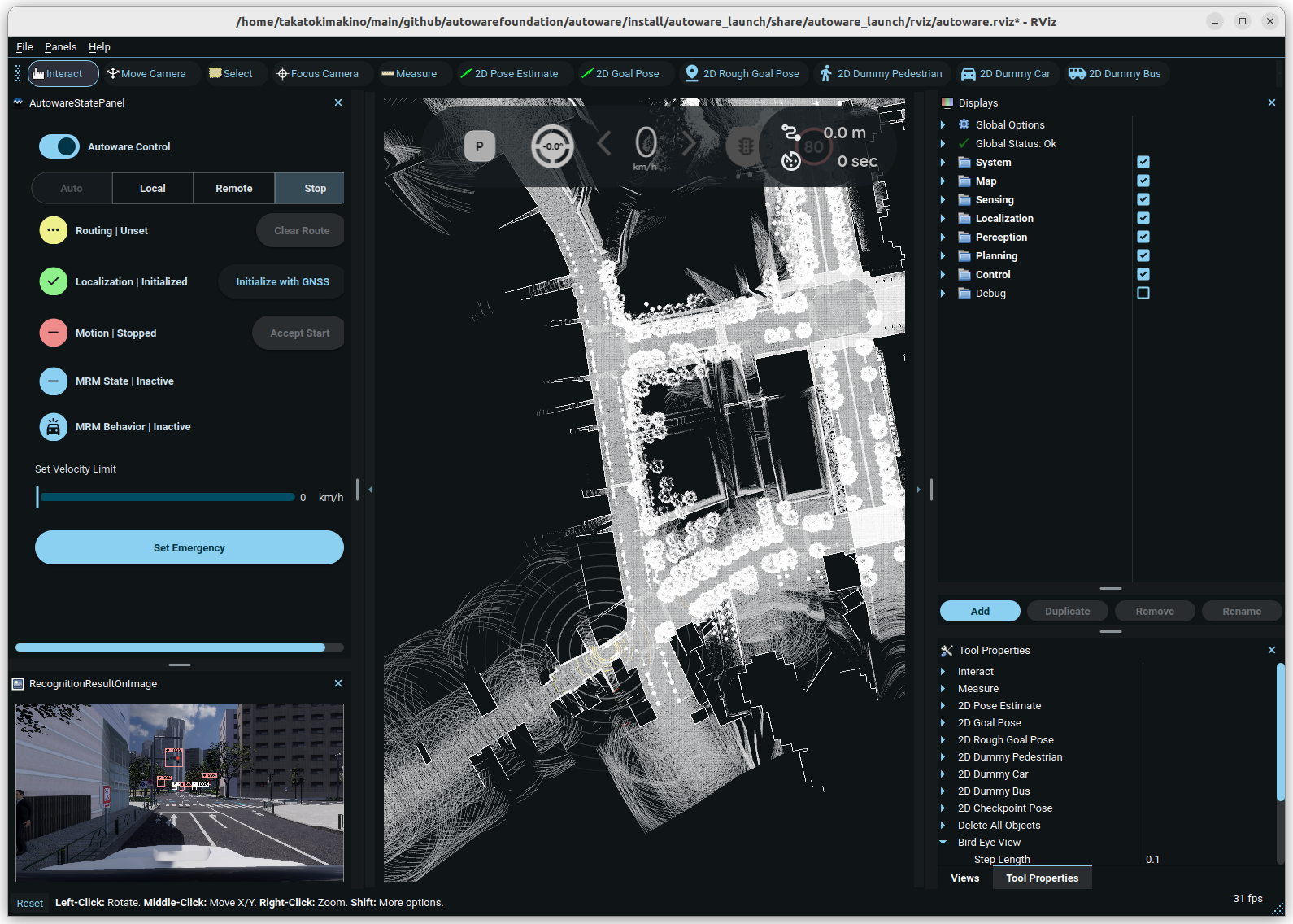

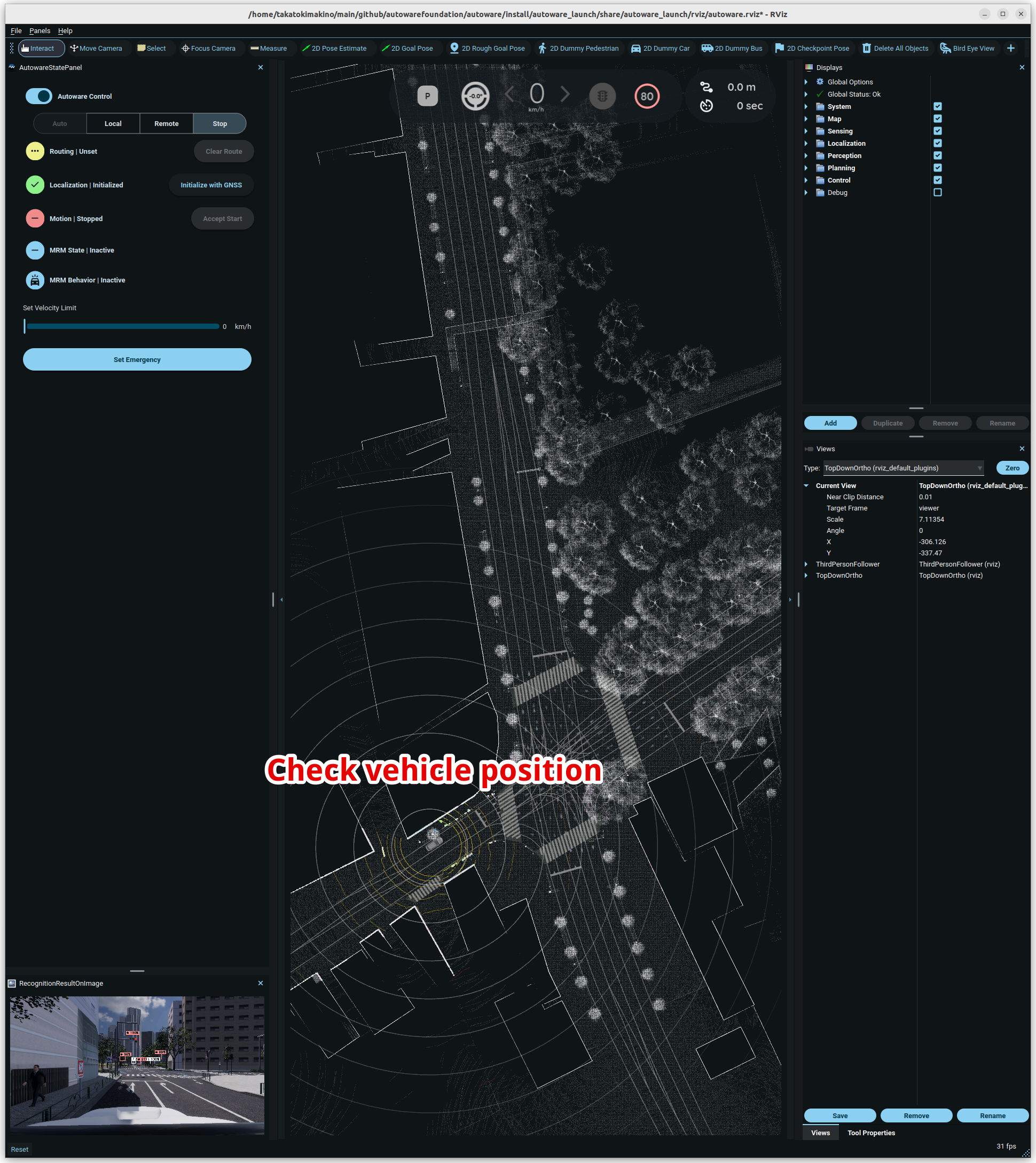

  2. The Autoware will automatically set its pose estimation as presented below.

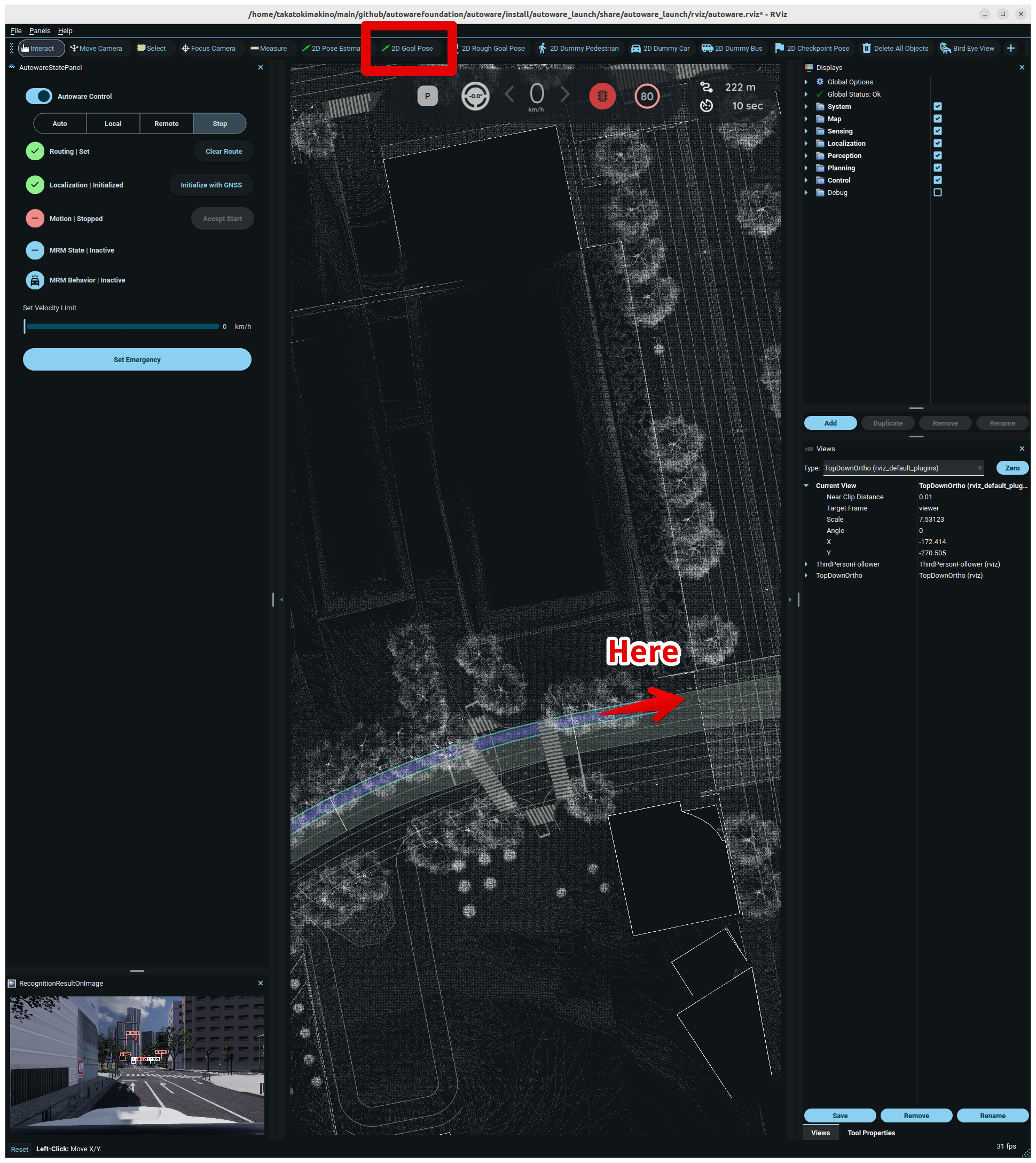

  3. Set the navigation goal for the vehicle.

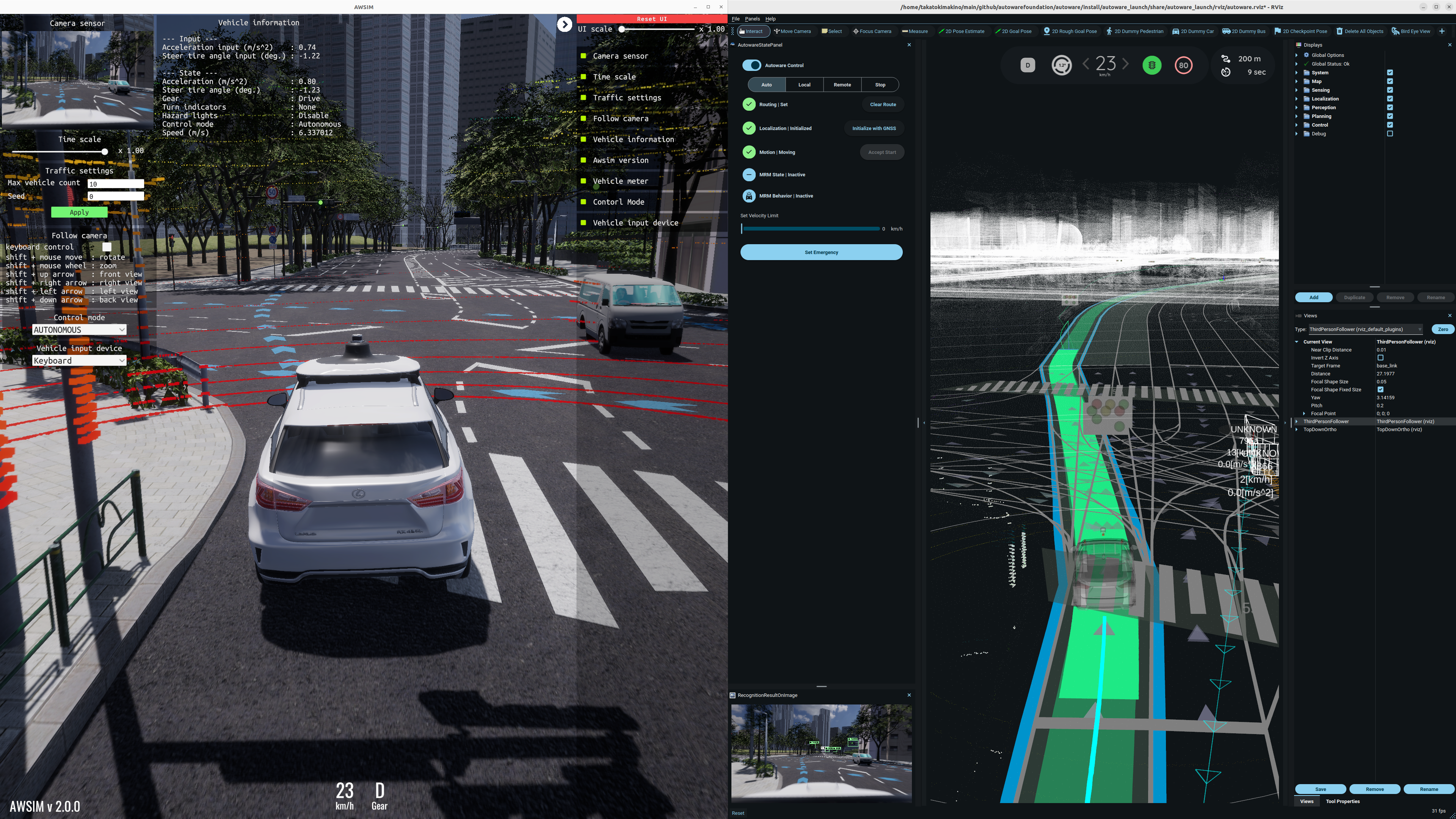

  4. Optionally, you can define an intermediate point through which the vehicle will travel on its way to the destination. The generated path can be seen on the image below.

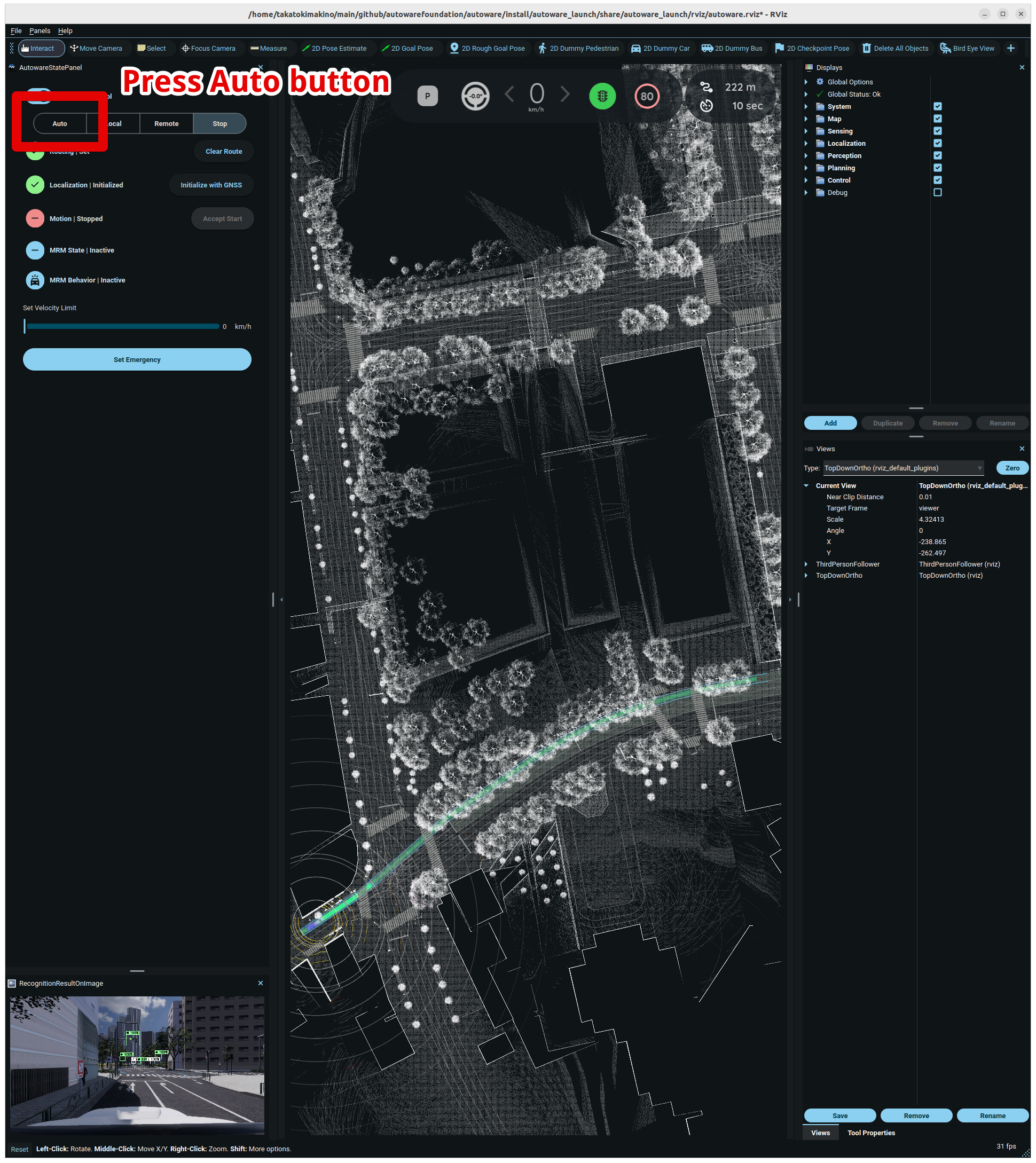

  5. Enable self-driving.

To make the vehicle start navigating please engage it's operation using the command below.

cd autoware
source install/setup.bash
ros2 topic pub /autoware/engage autoware_auto_vehicle_msgs/msg/Engage '{engage: True}' -1

The self-driving simulation demo has been successfully launched!
