3.5. Is there a way to boot the OS without holding down the power pin?#

It can be started by applying voltage(~12V) to pin 18 of GPIO (P8).

../../_images/boot_pin.png

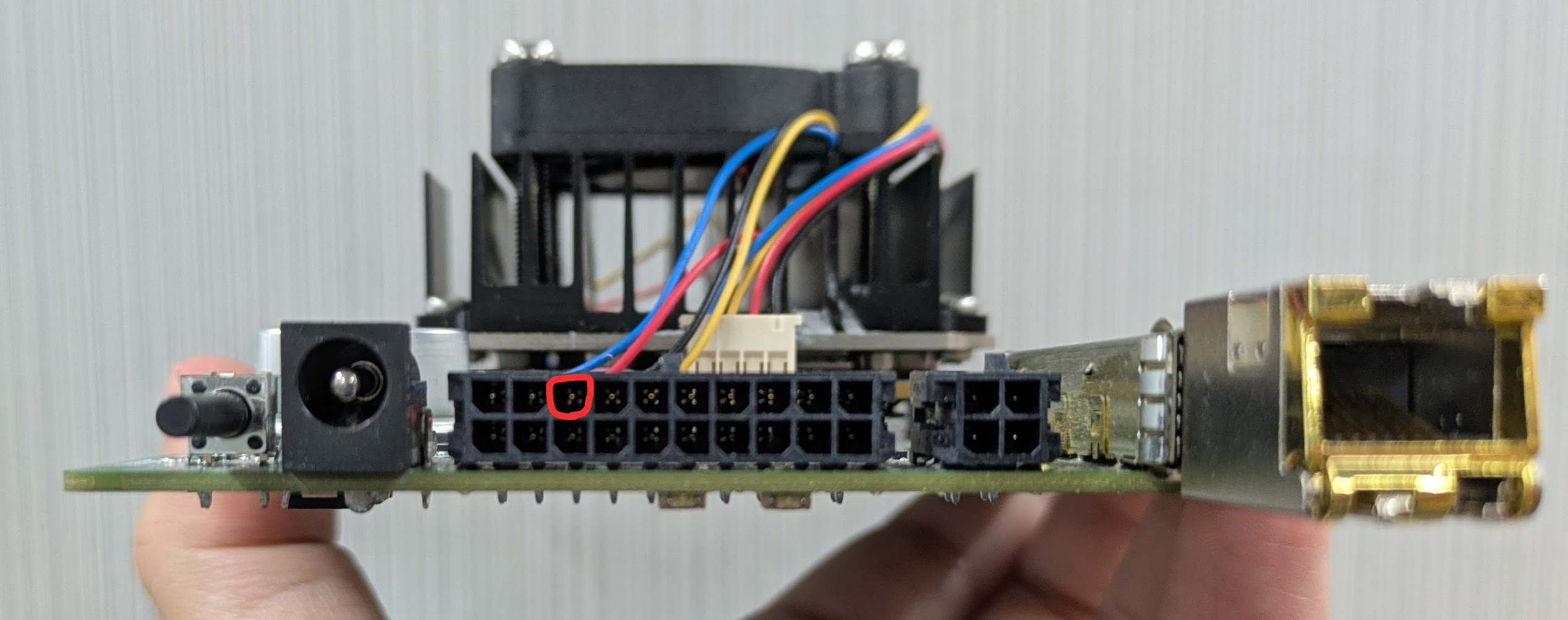

Fig. 3.9 Pin 18 of GPIO(P8) (red circle)#

For details, please refer to the circuit diagram that can be downloaded from this link.
