Reference Camera Series#

For datasheets or other information on the Reference Camera Series, please contact camera@tier4.jp.

C1 models#

Specifications#

Model Name

C1-046

C1-085

C1-120

C1-198

Camera size

38.5mm x 38.5mm x 42.19mm

38.5mm x 38.5mm x 43.21mm

38.5mm x 38.5mm x 48.93mm

38.5mm x 38.5mm x 40.44mm

Camera weight

48g

53g

55g

51g

Field of View (FoV) (Horizontal/Vertical)

LDC OFF
46deg/32deg
LDC ON
46deg/32deg

LDC OFF
85deg/56deg
LDC ON
78deg/56deg

LDC OFF
120deg/77deg
LDC ON
111deg/77deg

LDC OFF
198.6deg/128.2deg
LDC ON
162deg/125deg

F#

2.2

1.7

1.8

2

EFL

6.72mm

3.955mm

2.9mm

1.723mm

TTL

14.9mm

18.59mm

21.01mm

15.79mm

Image Circle

\(\phi\) 7.942mm

\(\phi\) 7.84mm

> \(\phi\) 7.2mm

\(\phi\) 5.9mm Max

IRCF

650±10nm

648±10nm

650±15nm

650±10nm

Resolution (TV Line)

750TVL @ Center, 500TVL @ 70% Image height

750TVL @ Center, 500TVL @ 70% Image height

750TVL @ Center, 500TVL @ 70% Image height

750TVL @ Center, 500TVL @ 70% Image height

Depth of Field

185cm - Infinity Focus peaking distance: 400cm

112cm - Infinity Focus peaking distance: 400cm

106.7cm - Infinity Focus peaking distance: 400cm

33cm - Infinity Focus peaking distance: 100cm

Power consumption

1.7W

1.7W

1.7W

1.7W

Power supply level

9 - 12 [V]

9 - 12 [V]

9 - 12 [V]

9 - 12 [V]

Storage temperature

-40°C ~ 105°C

-40°C ~ 105°C

-40°C ~ 105°C

-40°C ~ 105°C

Outline diagram#

../../_images/c1_outline_046.webp

C1-046 (46°)#

../../_images/c1_outline_085.webp

C1-085 (85°)#

../../_images/c1_outline_120.webp

C1-120 (120°)#

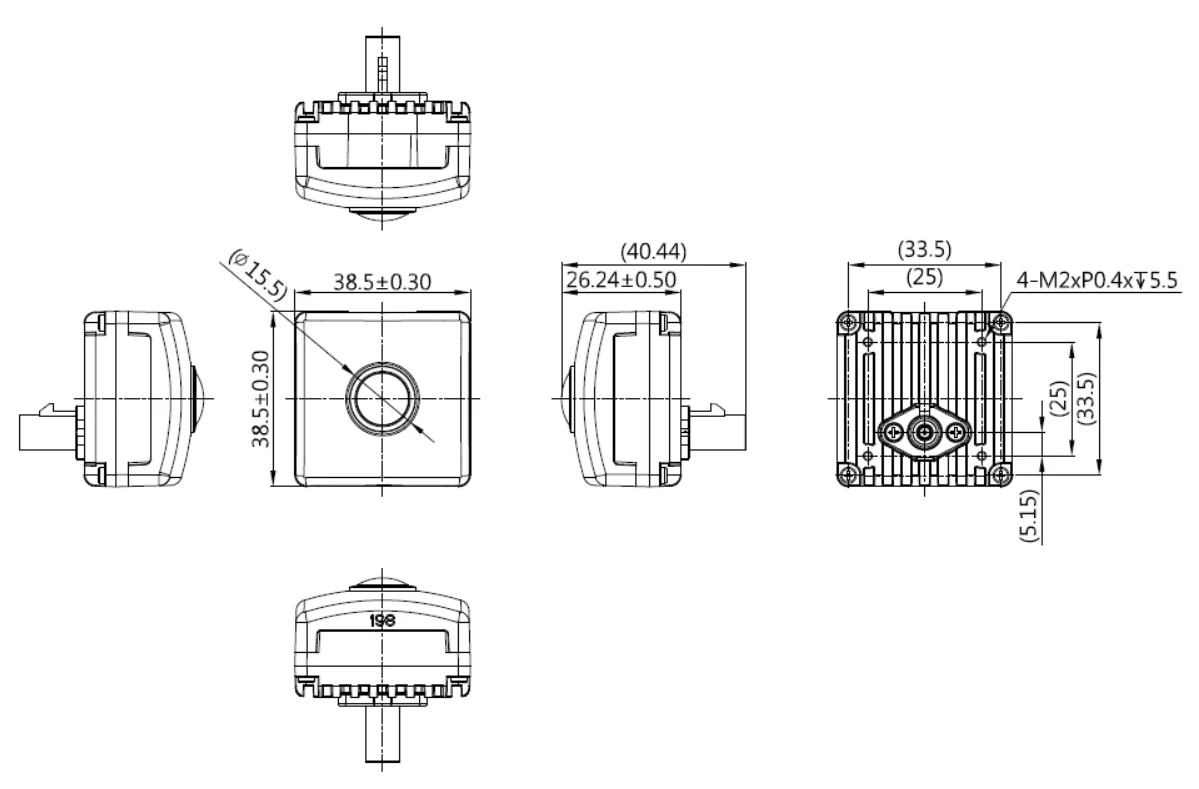

../../_images/c1_outline_198.webp

C1-198 (198°)#

C2 models#

Specifications#

Model Name

C2-030

C2-062

C2-120

C2-176

Camera size

45mm x 45mm x 48.6mm

45mm x 45mm x 53.55mm

45mm x 45mm x 53.04mm

45mm x 45mm x 45.9mm

Camera weight

115g

142g

125g

107g

Field of View (FoV) (Horizontal/Vertical)

LDC OFF
30deg/19.5deg
LDC ON
N/A

LDC OFF
63.5deg/41deg
LDC ON
63deg/40deg

LDC OFF
120deg/73deg
LDC ON
107deg/73deg

LDC OFF
175.3deg/105.3deg
LDC ON
143.3deg/101.3deg

F#

1.6

1.7

1.6

1.8

EFL

16.3mm

7.9mm

4.63mm

3.1mm

TTL

30.01mm

35mm

35mm

27.86mm

Image Circle

\(\phi\) 10.5mm

\(\phi\) 10.66mm

\(\phi\) 10.6mm Max

\(\phi\) 9.1mm Max

IRCF

650nm @ 50% transmission

650nm @ 50% transmission

650nm @ 50% transmission

650nm @ 50% transmission

Resolution (TV Line)

1000TVL @ Center
700TVL @ 70% Image height

1000TVL @ Center
700TVL @ 70% Image height

1000TVL @ Center
600TVL @ 70% Image height

900TVL @ Center
500TVL @ 70% Image height

Depth of Field

14m - Infinity Focus
peaking distance: 28m

309cm - Infinity Focus
peaking distance: 620cm

250cm - Infinity Focus
peaking distance: 400cm

45cm - Infinity Focus
peaking distance: 90cm

Power consumption

4.6W

4.6W

4.6W

4.6W

Power supply level

9 - 12 [V]

9 - 12 [V]

9 - 12 [V]

9 - 12 [V]

Storage temperature

-40°C ~ 105°C

-40°C ~ 105°C

-40°C ~ 105°C

-40°C ~ 105°C

Outline diagram#

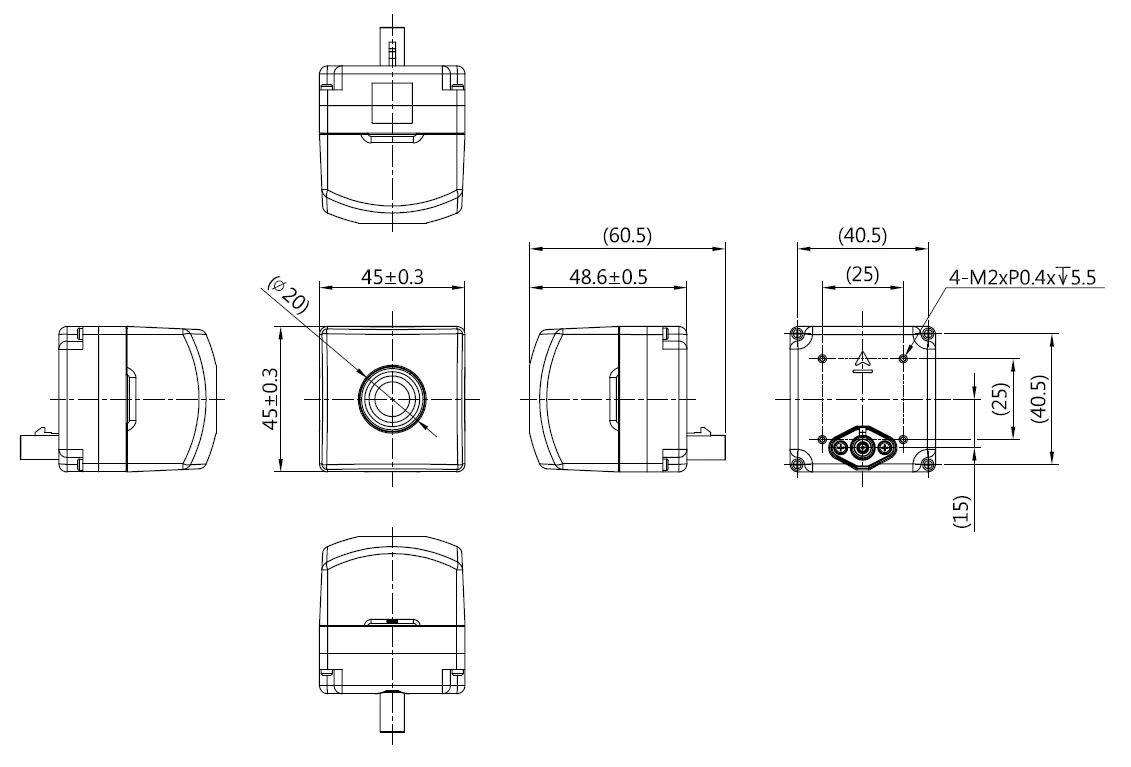

../../_images/c2_outline_030_eol.webp

C2-030 (30°)#

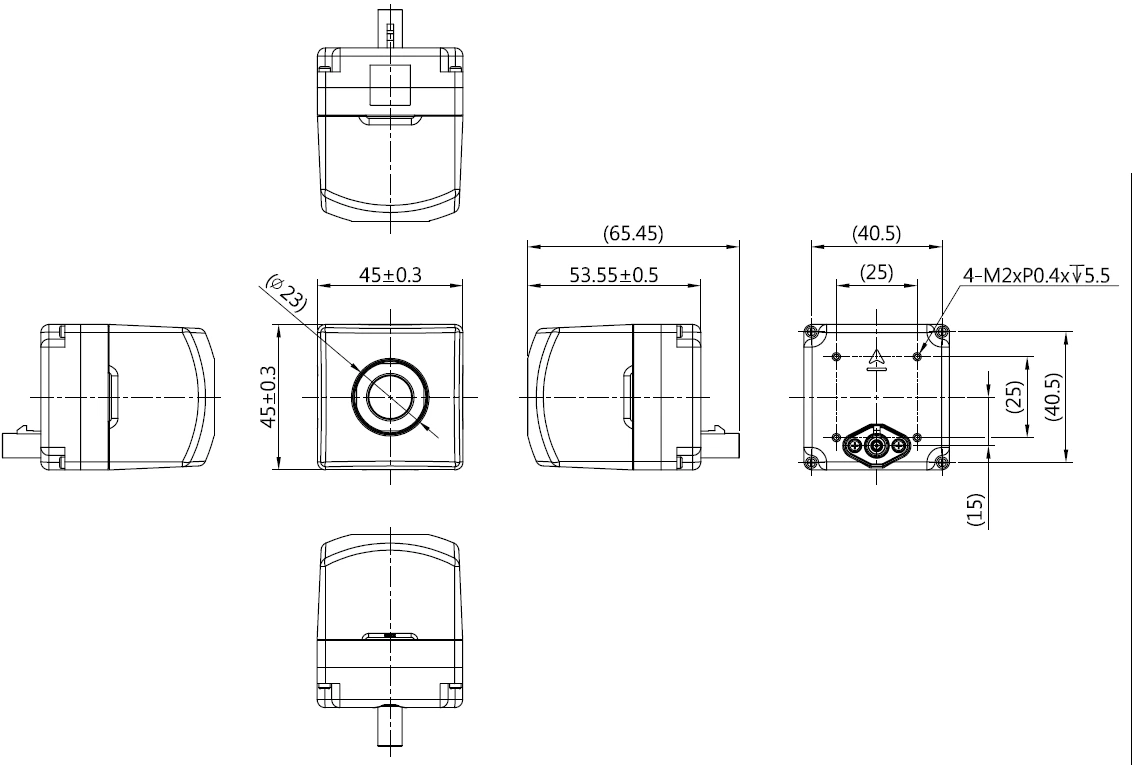

../../_images/c2_outline_062_eol.webp

C2-062 (63.5°)#

../../_images/c2_outline_120.webp

C2-120 (120°)#

../../_images/c2_outline_176.webp

C2-176 (176°)#

C3 models#

Specifications#

Model Name

C3-030

C3-070

C3-120

Camera size

45mm x 45mm x 51.23mm

45mm x 45mm x 47.58mm

45mm x 45mm x 47.98mm

Camera weight

-

-

-

Field of View (FoV) (Horizontal/Vertical)

LDC OFF
30deg/16.8deg
LDC ON
N/A

LDC OFF
70deg/39.6deg
LDC ON
67deg/38.0deg

LDC OFF
120deg/65deg
LDC ON
109deg/66.5deg

F#

1.7

1.6

1.6

IRCF

650nm @ 50% transmission

650nm @ 50% transmission

650nm @ 50% transmission

Resolution (TV Line)

1200TVL @ Center
1000TVL @ 70% Image height

1200TVL @ Center
1000TVL @ 70% Image height

1000TVL @ Center
600TVL @ 70% Image height

Depth of Field

17m - Infinity Focus
peaking distance: 33m

350cm - Infinity Focus
peaking distance: 700cm

250cm - Infinity Focus
peaking distance: 500cm

Power consumption

5.8W (at 30fps operation, -40 - 85℃)

5.8W (at 30fps operation, -40 - 85℃)

5.8W (at 30fps operation, -40 - 85℃)

Power supply level

9 - 12 [V]

9 - 12 [V]

9 - 12 [V]

Storage temperature

-40°C ~ 105°C

-40°C ~ 105°C

-40°C ~ 105°C

Outline diagram#

../../_images/c3_outline_030.webp

C3-030 (30°)#

../../_images/c3_outline_070.webp

C3-070 (70°)#

../../_images/c3_outline_123.webp

C3-120 (120°)#

3-dimensional CAD data#
