FAQ

Installation

Setup fails

• In case you encounter errors during setup or build process, please make sure to use an appropriate branch for your environment
  • ROS 2 Galactic, Ubuntu 20.04: galactic branch
  • ROS 2 Humble, Ubuntu 22.04: main branch
• It's also important to delete ./build ./install and ./src directory before rebuilding CARET if you have built CARET using wrong settings

CLI tool doesn't work

In case CLI tool execution fails, please make sure to perform CARET environment settings

source /opt/ros/humble/setup.bash
source ~/ros2_caret_ws/install/local_setup.bash

ros2 caret check_caret_rclcpp --workspace <path-to-workspace>

Warning

CARET CLI tool doesn't work properly in Anaconda environment. Please use pure Python.

Visualization

Result (plot, message_flow, etc.) is not outputted, or there seems something wrong with the result

• Please use the following commands for verification
  • ros2 caret check_caret_rclcpp to check if a target application is built with CARET/rclcpp
  • ros2 caret check_ctf to check if tracing data is recorded properly
• Please make sure the followings:
  • A target application is built with CARET/rclcpp
  • CARET environment is set properly before running a target application
    • export LD_PRELOAD=$(readlink -f ~/ros2_caret_ws/install/caret_trace/lib/libcaret.so)
    • source ~/ros2_caret_ws/install/local_setup.bash
  • LTTng trace is started before running a target application
    • ros2 trace -s e2e_sample -k -u "ros2*"
    • or consider to use launch file
  • Trace data is not discarded
    • In case trace data is discarded, use Trace filter
  • The size of trace data is proper
    • If the size of trace data is extremely small (e.g. only few KByte) and a target application has lots of nodes, the maximum number of file descriptors may not be enough. It can be increased by ulimit -n 65536
• See Recording for more details

Parts of results are not outputted

• If certain nodes are not traced but some nodes are traced, some packages may be built without CARET/rclcpp. Please make sure <depend>rclcpp</depend> is described in package.xml
• Another possibility is that some nodes can't be analyzed due to CARET's limitations:
  • CARET cannot analyze a node which has two or more timer callbacks with the same period time setting
  • CARET cannot analyze a node which has two or more subscription callbacks with the same topic name
• Callback information in such nodes are not outputted. Also, message flow will be discontinued at such nodes

TraceResultAnalyzeError: Failed to find error occurs

• The error occurs if information in an architecture file and trace data are inconsistent with each other
• Please modify the architecture file or check recording process
• e.g.
  • TraceResultAnalyzeError: Failed to find callback_object.node_name: /localization/pose_twist_fusion_filter/ekf_localizer, callback_name: timer_callback_0, period_ns: 19999999, symbol: void (EKFLocalizer::?)()

Visualization (callback)

Callback frequency is smaller than expected value

• Plot.create_callback_frequency_plot calculates frequency from one second to one second. It counts how many times a callback function is called for a second, and just uses the count as frequency. Therefore, the frequency on the last term tends to small because the last term is usually shorter than one second
• Another possibility is that the frequency of a subscription callback will be small if it receives topics not periodically but infrequently. Also, the frequency of a timer callback will be small if the timer dynamically stops/starts

Callback latency is bigger than expected value

• Some nodes may run initialization process. In this case, the latency time calculated by Plot.create_callback_latency_plot is huge on the first execution

Visualization (message flow)

Message flow is discontinued

• If parts of nodes/communications don't run at all during recording, message flow stops on the way and such nodes/communications are not displayed on y-axis
  • Please make sure that all nodes/communications in a target path run during recording, or modify a target path to analyze actually working path
• Another possibility is that a target path includes a node which CARET cannot analyze due to its limitations as explained above

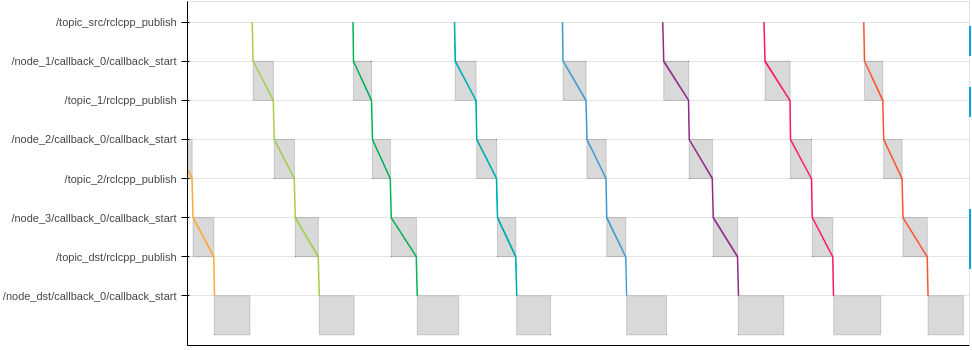

What is a gray color rectangle in a message flow diagram?

• A rectangle in a message flow diagram indicates a period from the entry to the exit of a callback function, while a line shows a flow of topics
• Note: a rectangle is not always illustrated

Huge delay between topic publication and callback start

• In a message flow diagram, term from ooo/rclcpp_publish to ooo/callback_start means latency from when a topic is published to when the following callback starts
• It includes the following time:
  • Communication (topic) latency
  • Wait by ROS scheduler
  • Wait by OS scheduler
• In most cases, it doesn't take so much time. In case the time is huge, the followings are possible causes:
  • There is a problem in communication
  • An executor cannot wake up because other processes occupy CPU
  • A callback cannot wake up because other callbacks in the same callback group occupy the executor
  • Processing time of a callback is longer than topic subscription period

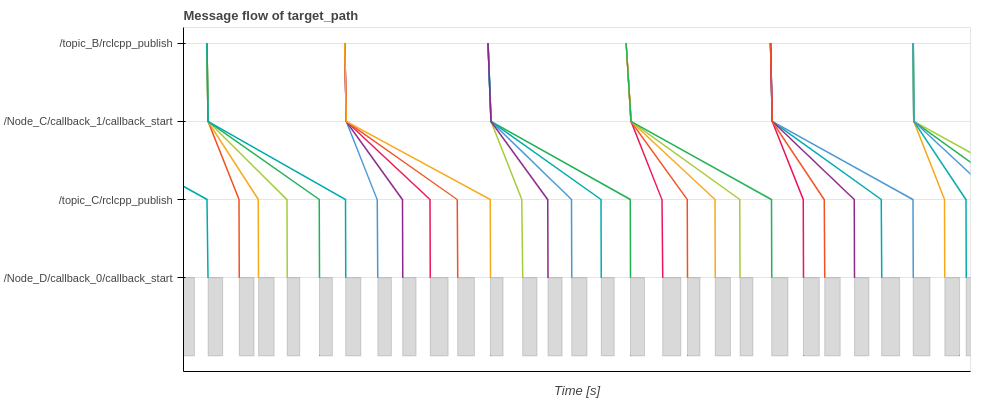

Message flow looks split

• Take the following system for example;
  • Node_C publishes a topic when it receives a topic from Node_A
  • Node_A publishes a topic with a rate of 50 Hz, while Node_B publishes a topic at 10 Hz
• Message flow (Node_B -> Node_C -> Node_D) looks split at Node_C. It's because Node_C publishes 5 topics while receiving 1 topic from Node_B
• Note: A similar phenomenon will happen even if Callback c0 is a timer callback

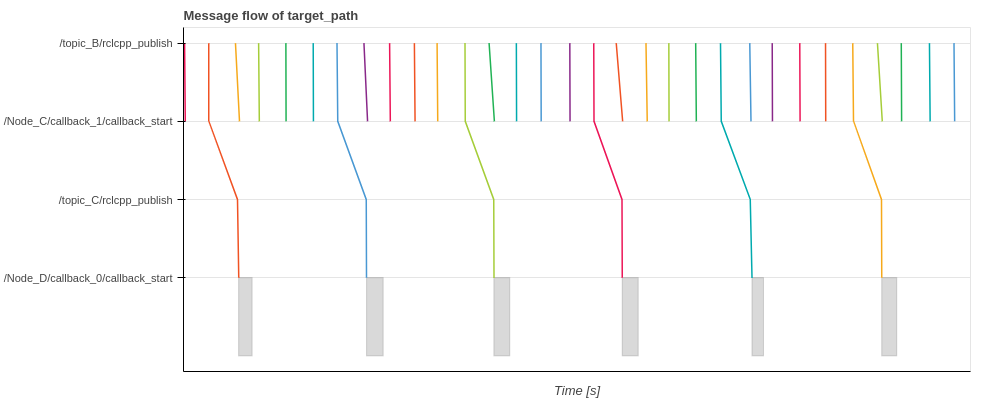

Message flow looks dropped

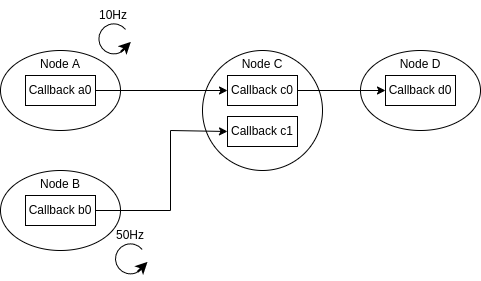

• Take the following system for example;
  • Node_C publishes a topic when it receives a topic from Node_A
  • Node_A publishes a topic with a rate of 10 Hz, while Node_B publishes a topic at 50 Hz
• Message flow (Node_B -> Node_C -> Node_D) looks disconnected at Node_C four times every five messages. It's because Node_C publishes 1 topic while receiving 5 topics from Node_B. So 4 topics don't have a corresponding topic to be published to Node_D
• Note: A similar phenomenon will happen even if Callback c0 is a timer callback

How response time is calculated?

• In general, response time is the time a system or functional unit takes to react to a given input (reference). Response time calculated by CARET is the time it takes for input data to arrive at the last node. It doesn't include processing time at the first/last node nor latency of an actuator. It's calculated as the sum of communication latency time (from the time when a node publishes a topic to the time when the following node subscribes the topic) and node latency time (from the time when a node subscribes a topic to the time when it publishes another topic) in a path

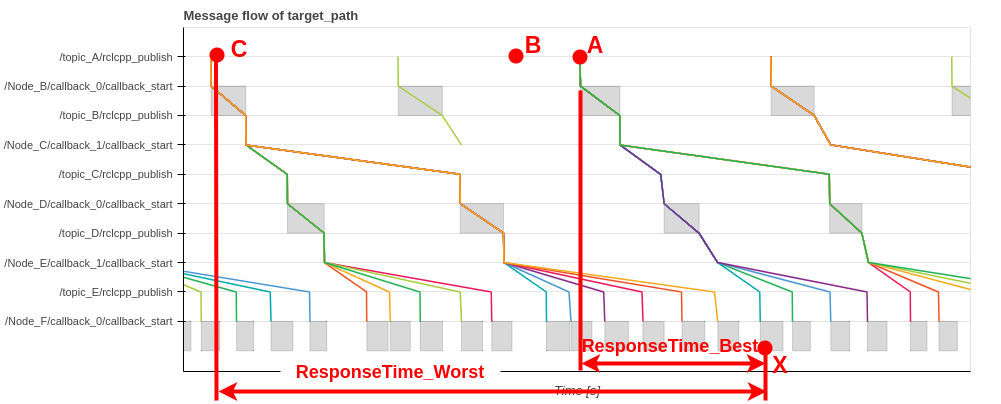

  • In the following diagram, input data at point A is first reflected with output at point X (ResponseTime_Best)
  • ResponseTime_Best can be considered as a path (dataflow) latency time
  • ResponseTime_Best can be considered as a happy case, which is contrary to the following worst case scenario
• Assuming that input information is created by a sensor such as an object detection sensor, delay in a sensor should be considered. For instance, if a new object appears at point B, the time from point B to point A should added to the response time. The worst case scenario is that a new object appears just after the previous flow (point C). Response time for the worst case is shown as ResponseTime_Worst
• CARET can calculate both ResponseTime_Best and ResponseTime_Worst using the following APIs:
  • response_time.to_best_case_timeseries() , response_time.to_best_case_histogram()
  • response_time.to_worst_case_timeseries() , response_time.to_best_worst_histogram()
• CARET also provides response_time.to_histogram() API. It creates histogram assuming a new object appears from point C to point A at intervals of histogram bin size
