The freespace planning algorithms package#

Role#

This package is for development of path planning algorithms in free space.

Implementes algorithms#

  • Hybrid A*
  • informed RRT*

Guide to implement a new algorithm#

  • All planning algorithm class in this package must inherit AbstractPlanningAlgorithm class. If necessary, please overwrite the virtual functions.

  • All algorithms must use nav_msgs::OccupancyGrid-typed costmap. Thus, AbstractPlanningAlgorithm class mainly implements the collision checking using the costmap, grid-based indexing, and coordinate transformation related to costmap.

  • All algorithms must take both PlannerCommonParam-typed and algorithm-specific- type structs as inputs of the constructor. For example, AstarSearch class's constructor takes both PlannerCommonParam and AstarParam.

  • All algorithms must be tested in 'test/src/test_freespace_planning_algorithms.cpp'

Running the standalone tests and visualization for all algorithms#

Building the package with ros-test and run tests:

$ colcon build --packages-select freespace_planning_algorithms
$ colcon test --packages-select freespace_planning_algorithms

Inside the test, simulation results are stored in /tmp/result_*.txt.

Note that the postfix corresponds to the testing scenario (multiple curvatures and single curvature cases). Loading these resulting files, by using

$ rosrun freespace_planning_algorithms debug_plot.py

one can create plots visualizing the path and obstacles as shown in the figures below.

The created figures are then again saved in /tmp with the name like /tmp/result_multi0.png.

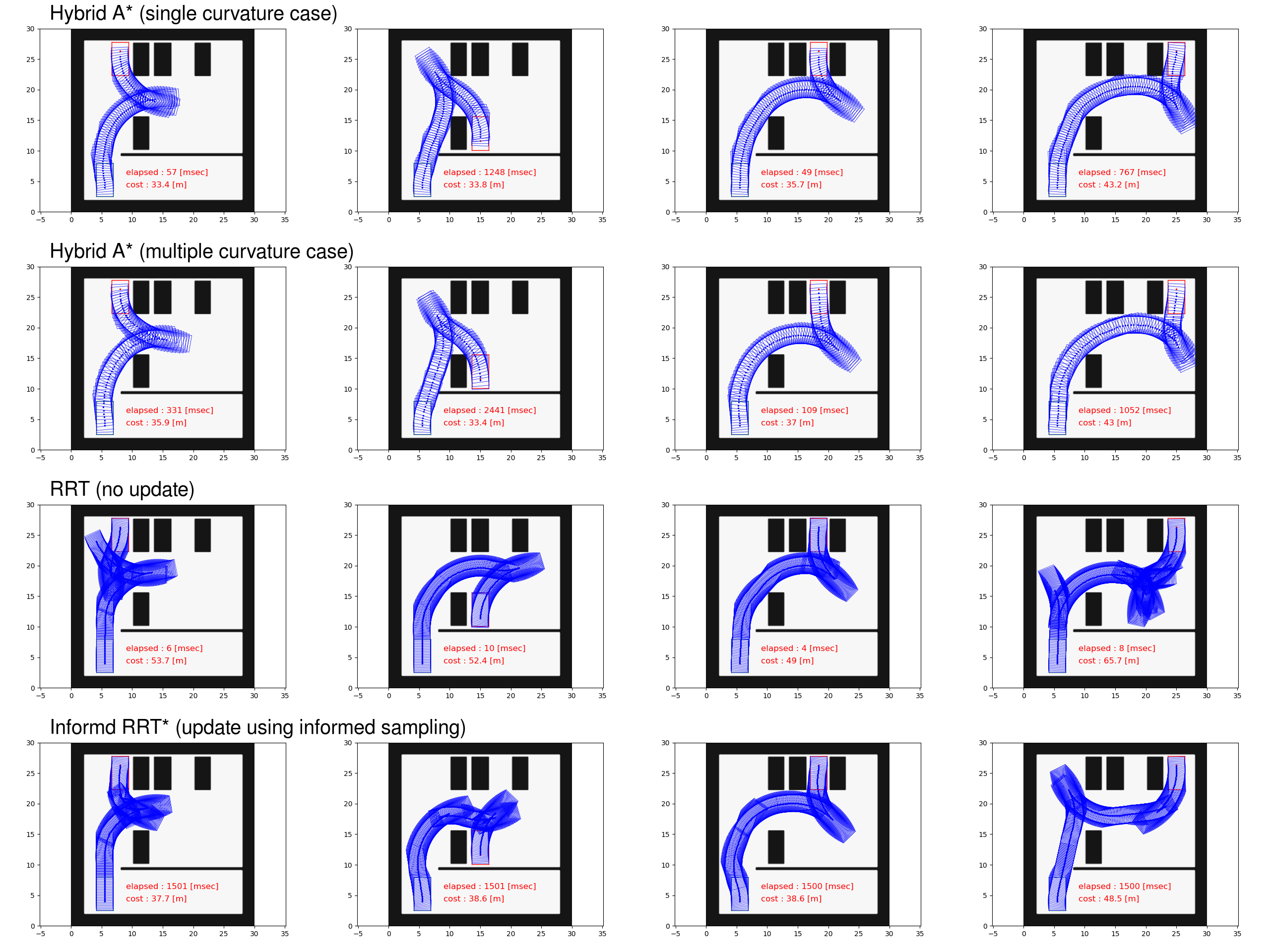

sample output figure

The black cells, green box, and red box, respectively, indicate obstacles, start configuration, and goal configuration. The sequence of the blue boxes indicate the solution path. Also, one can create the gif animation with --animate option

$ rosrun freespace_planning_algorithms debug_plot.py --animate

Running the ros-independent informed-RRT* for a toy problem#

The following commands do the job:

$ rosrun freespace_planning_algorithms debug_informed_rrtstar # planning
$ rosrun freespace_planning_algorithms debug_plot_rrtstar.py # visualization

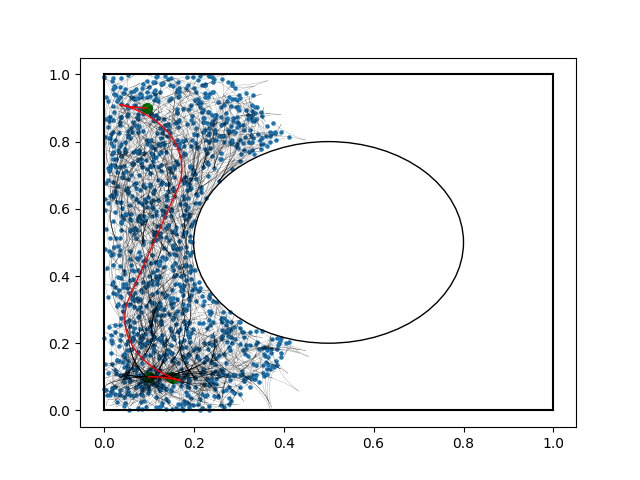

The debug plot of the planning-result looks like: sample output figure

License notice#

Files src/reeds_shepp.cpp and include/astar_search/reeds_shepp.h are fetched from pyReedsShepp. Note that the implementation in pyReedsShepp is also heavily based on the code in ompl. Both pyReedsShepp and ompl are distributed under 3-clause BSD license.
