AwsimRvizPlugins

Feature to operate AWSIM environment from the Rviz plugins.

The following features are implemented:

  • 2D Pose Teleport: Teleport AWSIM EGO pose from Rviz GUI tool
  • Npc Spawner: Spawn AWSIM Npc using Rviz GUI tool

Rviz plugins are implemented in the following repositories:

Info

If you want to use AwsimRvizPlugins with AWSIM, see here.

Abstract

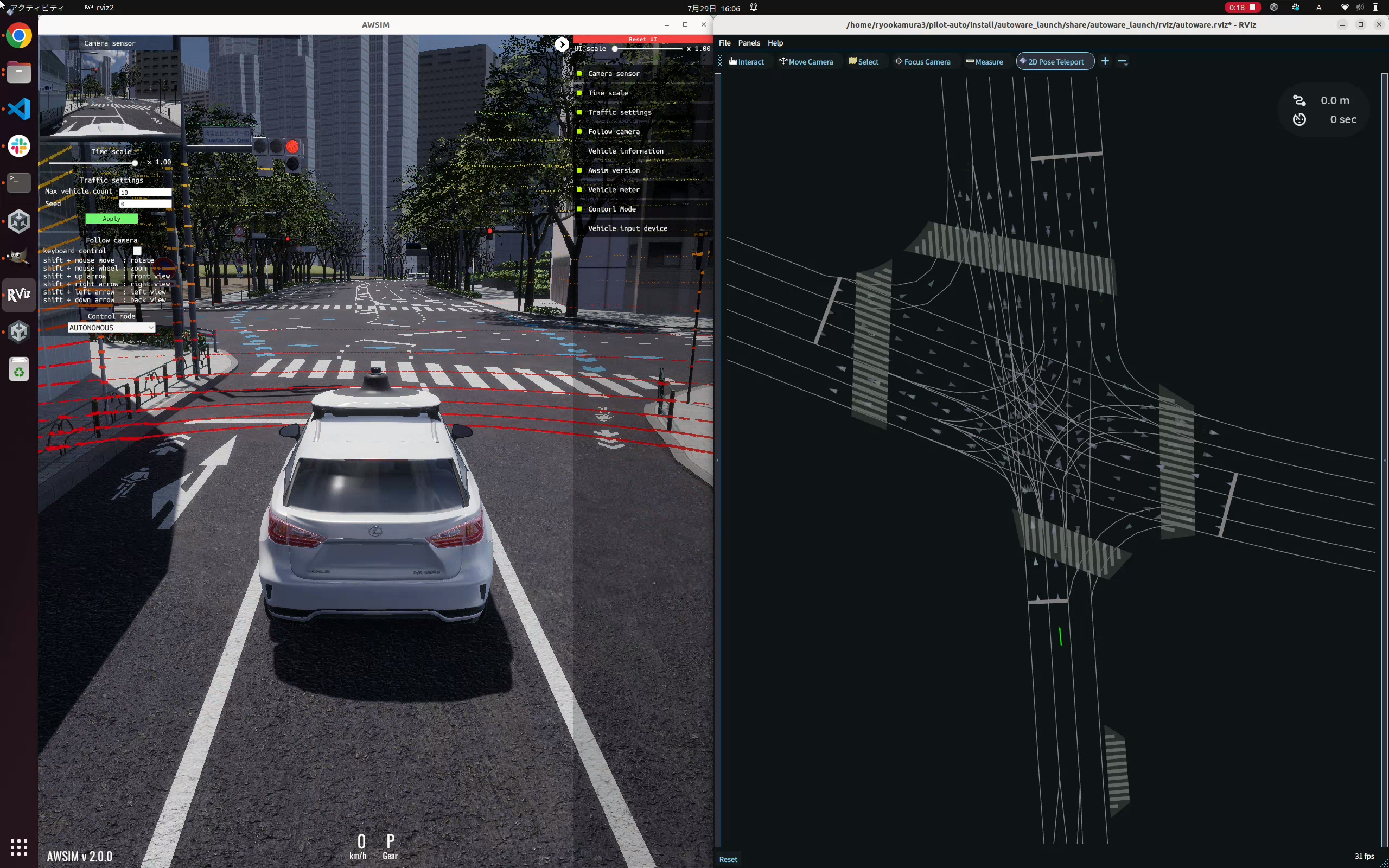

2D Pose Teleport

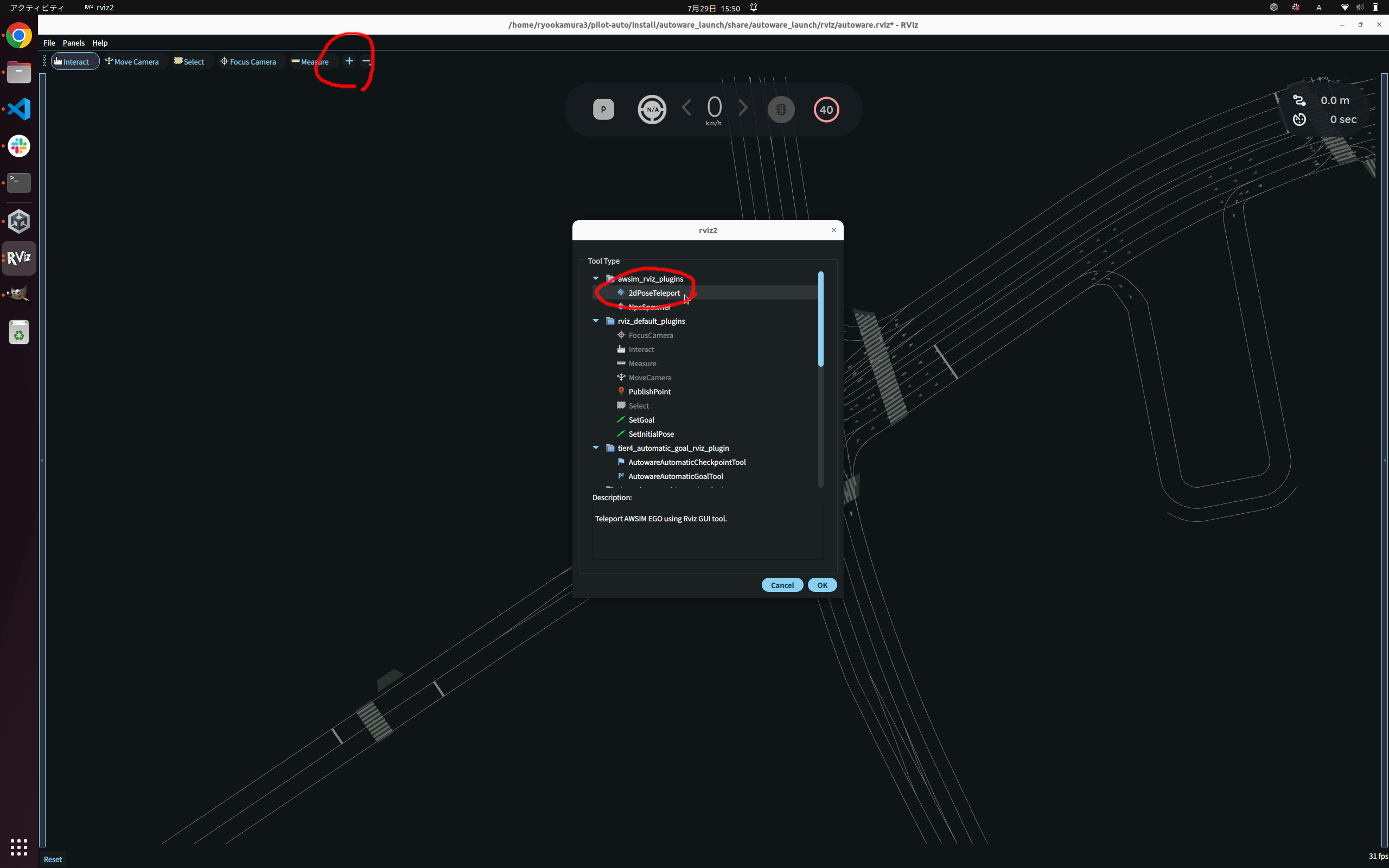

Teleport AWSIM EGO using Rviz GUI tool.

awsim_rviz_plugins/2dPoseTeleport tool gets position and orientation by dragging on the map displayed in Rviz, and publishes those as a /awsim/awsim_rviz_plugins/pose_teleport/pose_with_covariance topic.

AWSIM subscribes this topic and updates the coordinates of the EGO.

y-axis of destination position of teleport is calculated using ray-casting.
The highest object at the specified x-z coordinates is considered the ground.

Nps Spawner

Spawn AWSIM Npc using Rviz GUI tool. Type and velocity of spawned Npc is specified from Rviz display.

awsim_rviz_plugins/NpsSpawner tool gets position and orientation by dragging on the map displayed in Rviz, and publishes those as a /awsim/awsim_rviz_plugins/npc_spawner/pose_with_covariance topic.

AWSIM subscribes this topic and spawn Npc on the coordinates.

y-axis of destination position of teleport is calculated using ray-casting.
The highest object at the specified x-z coordinates is considered the ground.

awsim_rviz_plugins/NpsSpawnerStatus display is entered Npc type (drop down list) and velocity, and publishes those as a /awsim/awsim_rviz_plugins/npc_spawner/npc_name and /awsim/awsim_rviz_plugins/npc_spawner/npc_velocity topic.

AWSIM subscribes those topics and specify type and velocity of spawned Npc.

Spawnable Npc is listed in AutowreSimulationDemo/Function/AwsimRvizPluginsClient/.
AWSIM publishes name of spawnable Npc as /awsim/awsim_rviz_plugins/npc_spawner/npc_name_list topic.
awsim_rviz_plugins/NpsSpawnerStatus display subscribes this topic and update drop down list of Npc type.

Overview

Awsim Rviz Plugins consists of the following flow:

graph LR
    subgraph A["2D Pose Teleport::OnFixedUpdate()"]
        direction TB
        AA{Topic is Subscribed}--"yes"-->ABA
        subgraph AB["2D Pose Teleport::Spawn()"]
            direction TB
            ABA("Ray cast to get floor y-axis")-->ABB("Update Ego position")-->ABC("Update Ego rotation")
        end
        ABC-->AC("End")
        AA--"no"-->AC
    end

    A~~~B

    subgraph B["Nps Spawner::OnFixedUpdate()"]
        direction TB
        BA{ReadyVehicle is on Ground}--"yes"-->BB("ReadyVehicle add NpcVehicleList")-->BC("ReadyVehicle::OnFixedUpdate()")-->BD("NpcVehicleList::OnFixedUpdate()")-->BE("NpcPedestrianList::OnFixedUpdate()")-->BF{Topic is Subscribed}--"yes"-->BG{Type of spawning Npc}--"Vehicle"-->BH("Spawn and add ReadyVehicle")-->BJ("End")

        BG--"Pedestrian"-->BI("Spawn and add NpcPedestrianList")-->BJ

        BA--"no"-->BC
        BF--"no"-->BJ
    end

Configuration

Awsim Rviz Plugins can be configured from AwsimRvizPluginsClient component.

The configurable elements are listed in the following table:

2D Pose Teleport

Parameter Description
Ego Transform Ego vehicle which is controlled by this plugin.
Ego Position Topic Name of topic about position which Ego teleport.

Npc Spawner Settings

Parameter Description
Npc Vehicle Prefabs List of Npc vehicle.
Each element have identifier (Name) and reference (Prefab).
Npc Pedestrian Prefabs List of Npc pedestrian.
Each element have identifier (Name) and reference (Prefab).
Npc Position Topic Name of topic about position which Npc spawn.
Npc Name Topic Name of topic about type of spawned Npc.
Npc Velocity Topic Name of topic about velocity of spawned Npc.
Npc Name List Topic Name of topic about list of vehicle names in Rviz.

Instruction

To use Awsim Rviz Plugins, please follow the steps below.

1. Place AwsimRvizPluginsClient

Please create AwsimRvizPluginsClient component as the following:

  1. Create empty GameObject (should be named AwsimRvizPluginsClient)
  2. Attach this object to AwsimRvizPluginsClient component
  3. Fill in Ego Transform field with EGO vehicle

2. Fill in Npc Spawner Settings

Please configure Npc Spawner Settings component as the following:

  1. Add and fill list element of Npc Vehicle Prefabs
    1. Fill in Name field with any name (prefab name recommended)
    2. Fill in Prefab field with vehicle prefab which is attached PoseVehicle component
  2. Add and fill list element of Npc Pedestrian Prefabs
    1. Fill in Name field with any name (prefab name recommended)
    2. Fill in Prefab field with vehicle prefab which is attached Pedestrian component
